Trina Solar
Art-Nr. 6357593

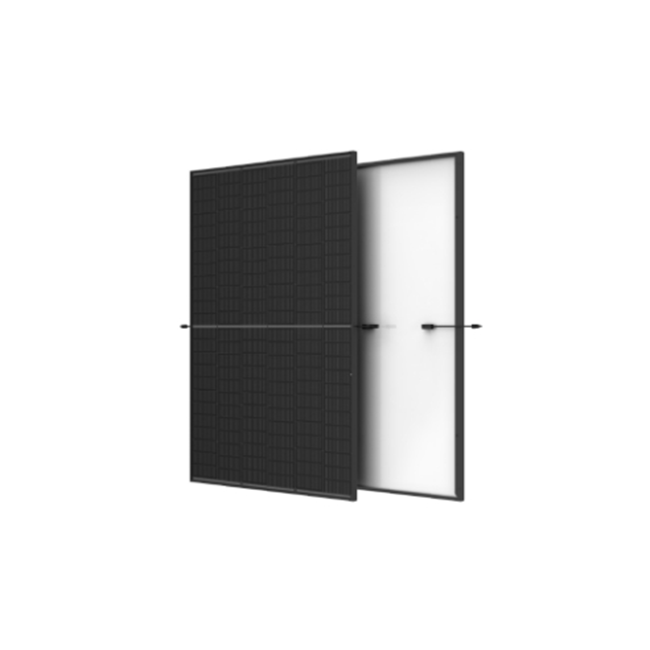

TSM-450NEG9R.25 Vertex S+
CHF 191.25
TRINA SOLAR TopCon-Modul Glas-Glas schwarz
Hersteller Artikelnummer: TSM-450NEG9R.25
Hersteller Artikelnummer: TSM-450NEG9R.25
Verfügbarkeit:
Auf Lager
SKU
6357593
Product information
- cable included (approx. 140 cm) and MC4 EVO2 connection system
- stable frame made of black anodized aluminum
- high-performance solar cells
- version with 16 busbars
- glass thickness 1.6mm
- hail resistance: RG 3 (AEAI Certificate)
| Brands | Trina Solar |
|---|
| Maximum surface load capacity (pressure) (Pa): | 5400 |
| Max. pressure Wind load (suction) (Pa): | 4000 |
| Number of cells: | 144 |
| Bifacial: | No |
| Bus bars (p.): | 16 |
| Roof side rear sheet color: | White |
| Color of the back sheet on the cell side: | black |
| Protection class: | IP68 |
| Front glass thickness (mm): | 1.60 |
| Hail resistance class: | HW 3 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 110.00 |
| Cable length (cm) plus: | 110.00 |
| Short circuit current (A): | 10.74 |
| Open circuit voltage Uoc (V): | 52.90 |
| Power tolerance: | +5 Wp |
| Maximum reverse current (A): | 25 |
| Max. system voltage (V): | 1500 |
| Module composition: | bi-glass |
| Module efficiency (%): | 22.50 |
| Nominal power (Wc): | 450 |
| Nominal voltage Umpp (V): | 44.60 |
| Nominal current Impp (A): | 10.09 |
| Frame color: | black |
| Frame type: | framed |
| Connector Type: | MC4 Evo 2 |
| Temperature coefficient Isc (%/C): | 0.0400 |
| Temperature coefficient Pmpp (%/C): | -0.2900 |
| Temperature coefficient Uoc (%/C): | -0.2400 |
| Number of cells (horizontal): | 24 |
| Number of cells (vertical): | 6 |
| Cell width (mm): | 210,000 |
| Cell length (mm): | 182,000 |
| Cell type: | monocrystalline |
| Manufacturer: | Trina Solar |
| Manufacturer item designation: | TSM-450NEG9R.25 |
| Manufacturer's item number: | TSM-450NEG9R.25 |
| Instrastat product number (HS-Code): | 85414300 |
| Brand: | Trina Solar |
| Country of origin: | China |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Class 2 Protection |
| Manufacturer's Product Name: : | TSM-450NEG9R.25 Vertex S+ |
| Number of pallets per container: | 26 |
| Number per container: | 936 |
| Quantity per pallet: | 36 |
| Pallet dimensions LxWxH (mm): | 1800x1150x1250 |
| Packaging material: | Carton |
| Width without packaging (mm): | 1,134.00 |
| Weight without packaging (kg): | 21,000 |
| Height without packaging (mm): | 30.00 |
| Length without packaging (mm): | 1,762.00 |
| Guarantor: | Trina Solar |
| Performance Warranty (years): | 30 |
| Linear degressivity in %: | 0.4 |
| Product Warranty (years): | 25 |
| Initial % for the linear guarantee: | 99 |
