Huawei
Art-Nr. 6350152

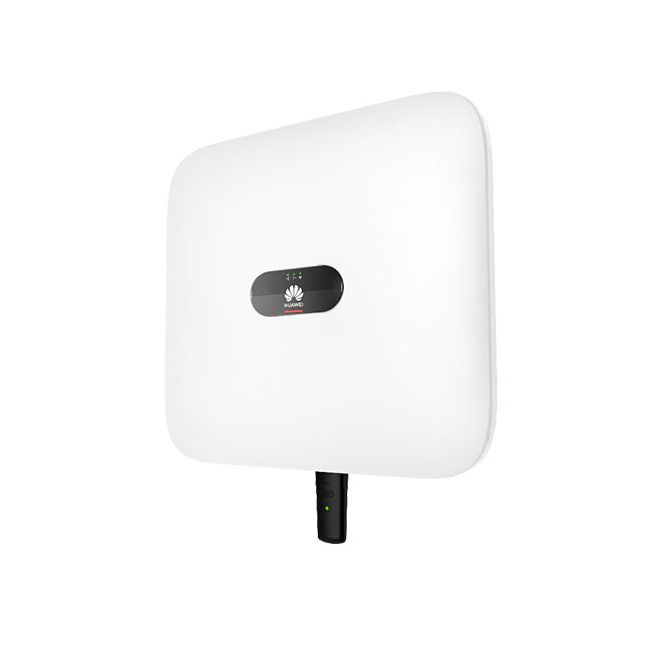

SUN2000-6KTL-M1 (13,5A)
CHF 959.86
Hybrid-Wechselrichter
Hersteller Artikelnummer: 01074315-006
Hersteller Artikelnummer: 01074315-006
Verfügbarkeit:
Auf Lager
SKU
6350152
Product information
The global manufacturer Huawei has been operating successfully in the photovoltaic and storage market for many years. This is also reflected in its wide range of inverters for every application. Whether XXL large-scale systems or sophisticated complete systems with storage and intelligent accessories for home use. Thanks to the direct connection of the in-house LUNA high-voltage storage system and the module optimisers, the 3-phase devices of the M1 series offer maximum flexibility in the residential sector. An extensive range of communication and protection components plus a backup function round everything off perfectly.
Product benefits:
- 13.5 A input current per MPPT
- WLAN-FE dongle included with inverter
- Also compatible with Huawei optimisers
Product features:
- AC power: 6.0 kW
- Number of MPPT: 2
- Overvoltage protection: Type 2 AC + DC
- AC connection: 3-phase
- Communication: RS485, WLAN / LAN with dongle
- Protection class: IP65
- Cooling: passive
- Dimensions: 470 x 525 x 146 mm (H x W x D)
- Weight: 17.0 kg
| Brands | Huawei |
|---|---|
| Shipping Weight | 17,000.00 kg |
Deutsch
Englisch
| Arc Fault Circuit Interrupter: | yes |
| Topology: | transformerless |
| Interface 1: | RS485 |
| Feed-in phases: | 3 |
| Step-Up converter: | yes |
| Max. input voltage DC (V): | 1.100,00 |
| Number of independent MPPT (pcs): | 2 |
| DC connector type: | MC4 |
| Protection degree: | IP65 |
| AC nominal power (kW): | 6,00 |
| Max. generator power DC (kWp): | 9,00 |
| European efficiency (%): | 97,70 |
| Battery voltage: | High Voltage |
| Max. efficiency (%): | 98,60 |
| Max. AC power (kVA): | 6,60 |
| Display: | w/o display |
| Battery Connection: | DC |
| Inverter type: | hybrid inverter, string inverter |
| Max. temperature ambient (°C): | 60 |
| Integrated DC switch: | yes |
| Offgrid usable: | yes |
| Min. voltage range input (V): | 140 |
| Start input voltage (V): | 200 |
| Contact ripple control receiver: | yes |
| MPP max. voltage range input (V): | 980,00 |
| MPP min. voltage range input (V): | 140,00 |
| Max. output current (A): | 10,10 |
| Max. short circuit current (A) total: | 20,00 |
| AC grid frequency (Hz).: | 50/60 |
| AC grid voltage (V): | 220, 380, 400 |
| Total number of string inputs: | 2 |
| Surge protection AC: | type 2 |
| Surge protection DC: | type 2 |
| Max. input current DC (A) total: | 27,00 |
| Min. temperature ambient (°C): | 25 |
| Max. input current per MPPT (A).: | 13,5 |
| Degree of protection IP: | IP65 |
| Manufacturer: | Huawei |
| Intrastat country of origin: | China |
| Intrastat product number (HS-code): | 85044085 |
| Manufacturer item name: | SUN2000 -6KTL-M1 |
| Supplier item: | 01074315-006 |
| Brand: | Huawei |
| Compatible battery manufacturer: | Huawei |
| Manufacturer part number: : | SUN2000-6KTL-M1 |
| Pack. material: | cardboard box |
| Amount per Pallet: | 8 |
| Pal. weight (kg): | 188,00 |
| Pal. dim. LxBxH (mm): | 1150x650x1220 |
| Weight without packaging (kg): | 17,000 |
| Height without packaging (mm): | 147,00 |
| Width without packaging (mm): | 470,00 |
| Length without packaging (mm): | 525,00 |
| Warranty provider: | Huawei |
| Product warranty (yr): | 10 |
| Standard product warranty (yr): | 10 |
