Solitek
Art-Nr. 6358565

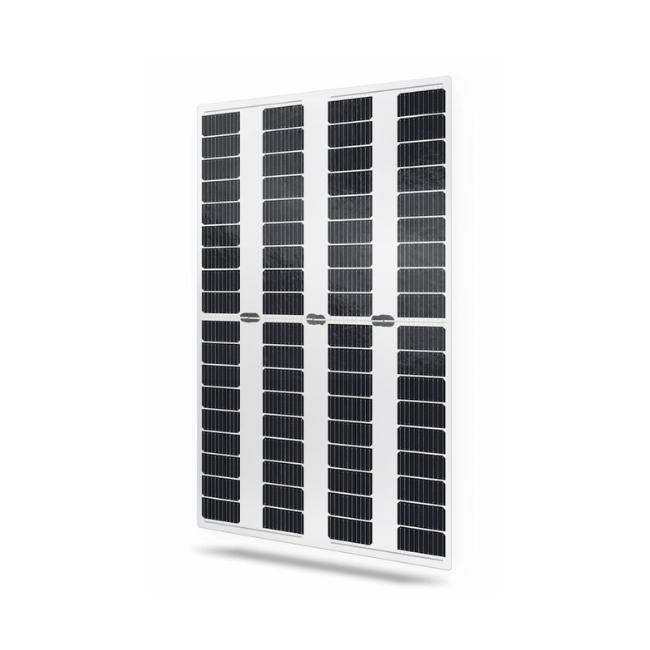

SOLID AGRO FRAMELESS GLASS/GLASS TRANPARENT 290
CHF 348.00
Solitek Topcon-Modul Glas-Glas bifazial
Hersteller Artikelnummer: SOLID Agro 290W
Hersteller Artikelnummer: SOLID Agro 290W
Verfügbarkeit:
Auf Lager
SKU
6358565
Product information
- cable included (approx. 120 cm) and MC4 EVO connection system
- Frameless transparent design
- Topcon high-performance bifacial solar cells
- Glass thickness: 2x 3.2 mm
- Approval for suspended glazing
- hail resistance: RG 4 ( AEAI Certificate )
| Brands | Solitek |
|---|
| Module reaction to fire: | A, IEC 61730 |
| Max. pressure Wind load (suction) (Pa): | 5400 |
| Maximum surface load capacity (pressure) (Pa): | 10500 |
| Number of cells: | 72 |
| Bifacial: | Yes |
| Bus bars (p.): | 10 |
| Roof side rear sheet color: | transparent |
| Color of the back sheet on the cell side: | transparent |
| Protection class: | IP68 |
| Front glass thickness (mm): | 3.20 |
| Hail resistance class: | HW 4 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 120.00 |
| Cable length (cm) plus: | 120.00 |
| Short circuit current (A): | 13.80 |
| Open circuit voltage Uoc (V): | 27.93 |
| Power tolerance: | +5W |
| Maximum reverse current (A): | 25 |
| Max. system voltage (V): | 1500 |
| Module composition: | bi-glass |
| Module efficiency (%): | 14.71 |
| Nominal power (Wc): | 290 |
| Nominal voltage Umpp (V): | 21.97 |
| Nominal current Impp (A): | 13.20 |
| Frame color: | none |
| Frame type: | Frameless |
| Connector Type: | MC4 Evo 2 |
| Temperature coefficient Isc (%/C): | 0.0450 |
| Temperature coefficient Pmpp (%/C): | -0.3000 |
| Temperature coefficient Uoc (%/C): | -0.2500 |
| Number of cells (horizontal): | 4 |
| Number of cells (vertical): | 18 |
| Cell width (mm): | 182,000 |
| Cell length (mm): | 91,875 |
| Cell section: | half-cell |
| Cell type: | monocrystalline |
| Manufacturer: | Solitek |
| Manufacturer item designation: | SOLID Agro 290W |
| Manufacturer's item number: | SOLID Agro 290W |
| Instrastat product number (HS-Code): | 85414300 |
| Brand: | Solitek |
| Country of origin: | Lithuania |
| Manufacturer's Product Name: : | SOLID AGRO FRAMELESS GLASS/GLASS TRANSPARENT 290 |
| Number per container: | 700 |
| Packaging material: | Carton |
| Width without packaging (mm): | 1,140.00 |
| Weight without packaging (kg): | 32,000 |
| Height without packaging (mm): | 7.20 |
| Length without packaging (mm): | 1,729.00 |
| Guarantor: | Solitek |
| Performance Warranty (years): | 30 |
| Linear degressivity in %: | 0.31 |
| Product Warranty (years): | 30 |
| Initial % for the linear guarantee: | 99 |
