Aleo
Art-Nr. 6352703

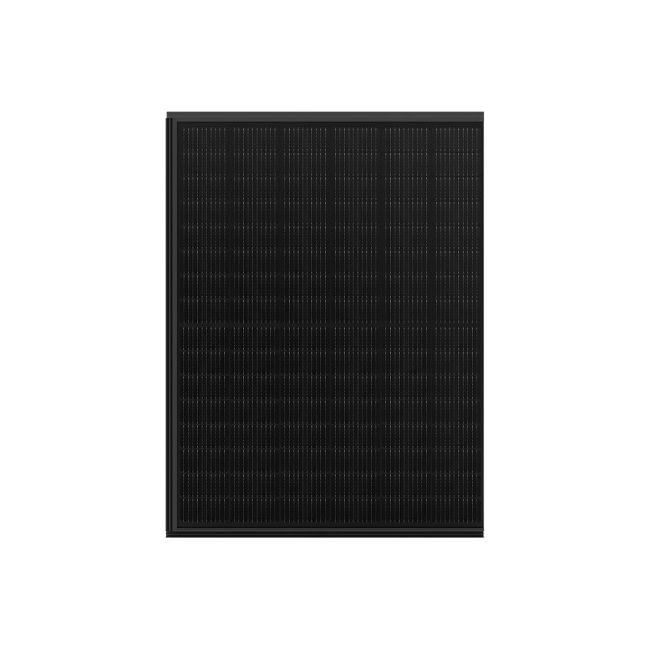

LEO SOL S82 345W Solrif
CHF 162.50
Aleo Solar Hochleistungsmodul schwarz
Hersteller Artikelnummer: S82T345
Hersteller Artikelnummer: S82T345
Verfügbarkeit:
Auf Lager
SKU
6352703
Product information
- including cable (ca. 120cm) and MC4 connector system
- Solrif black aluminum frame Solrif N
- high-performance solar cells
- model with 10 busbars
| Brands | Aleo |
|---|
| Module reaction to fire: | C, IEC 61730 |
| Maximum surface load capacity (pressure) (Pa): | 5400 |
| Max. pressure Wind load (suction) (Pa): | 2400 |
| Number of cells: | 96 |
| Bifacial: | No |
| Bus bars (p.): | 10 |
| Color of the back sheet on the cell side: | black |
| Protection class: | IP68 |
| Front glass thickness (mm): | 3.20 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 120.00 |
| Cable length (cm) plus: | 120.00 |
| Short circuit current (A): | 12.97 |
| Open circuit voltage Uoc (V): | 33.00 |
| Power tolerance: | +4.99 Wp |
| Maximum reverse current (A): | 25 |
| Max. system voltage (V): | 1000 |
| Module composition: | glass film |
| Module efficiency (%): | 18.40 |
| Nominal power (Wc): | 345 |
| Nominal voltage Umpp (V): | 27.85 |
| Nominal current Impp (A): | 12.39 |
| Frame color: | black |
| Frame type: | roof integration frame |
| Connector Type: | MC4 |
| Temperature coefficient Isc (%/C): | 0.0300 |
| Temperature coefficient Pmpp (%/C): | -0.3400 |
| Temperature coefficient Uoc (%/C): | -0.2600 |
| Cell width (mm): | 182,000 |
| Cell length (mm): | 91,000 |
| Cell section: | half-cell |
| Cell type: | monocrystalline |
| Manufacturer: | aleo |
| Manufacturer item designation: | S82T345 |
| Manufacturer's item number: | S82T345 |
| Instrastat product number (HS-Code): | 85414300 |
| Brand: | aleo |
| Country of origin: | Germany |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Class 2 Protection |
| Manufacturer's Product Name: : | LEO SOL S82 345W Solrif |
| Number of pallets per container: | 26 |
| Number per container: | 598 |
| Quantity per pallet: | 23 |
| Pallet weight (kg): | 451.00 |
| Width without packaging (mm): | 1,169.00 |
| Weight without packaging (kg): | 20,500 |
| Height without packaging (mm): | 17.00 |
| Longueur sans emballage (mm): | 1.607,00 |
| Garant: | aleo |
| Garantie de performance (années): | 25 |
| Dégréssivité linéaire en %: | 0,54 |
| Garantie du produit (ans): | 25 |
| % initial pour la garantie linéaire: | 98 |
