JA Solar
Art-Nr. 6358053
JAM54D40-455/LB
CHF 167.25

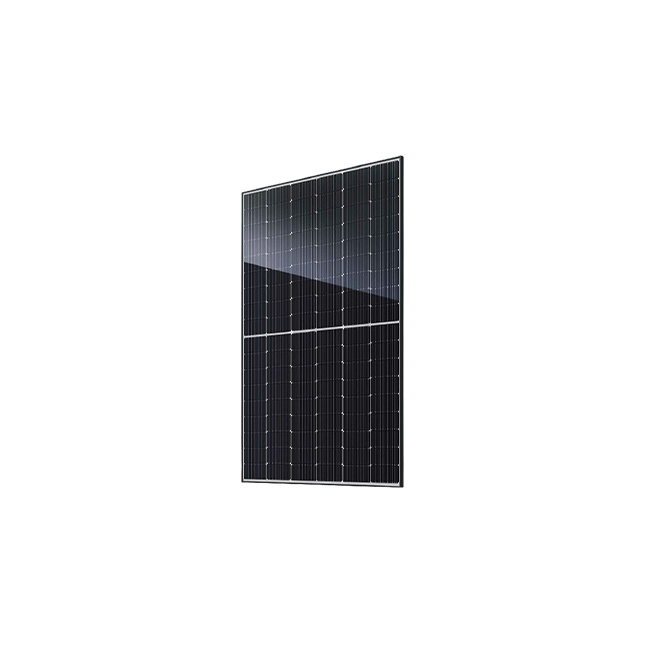

JA Solar bifaziales N-Type Modul Glas-Glas
Hersteller Artikelnummer: JAM54D40-455/LB
Hersteller Artikelnummer: JAM54D40-455/LB
Verfügbarkeit:
Auf Lager
SKU
6358053
Product information
- Cable (approx. 120 cm) and MC4 EVO2A connection system included
- Stable frame made of black anodized aluminum
- High-performance solar cell
- Version with 16 busbars
- Glass thickness 2x 1.6 mm
- Back glass with White-Mesh printing for better reflection (white grid-like coating that fills the spaces between the cells)
- hail resistance: RG 3 ( AEAI Certificate )
| Brands | JA Solar |
|---|
| Module reaction to fire: | C, Class 2, IEC 61730, UL 61730 |
| Maximum surface load capacity (pressure) (Pa): | 5400 |
| Max. pressure Wind load (suction) (Pa): | 2400 |
| Number of cells: | 108 |
| Bifacial: | Yes |
| Bus bars (p.): | 16 |
| Color of the back sheet on the cell side: | white |
| Protection class: | IP68 |
| Front glass thickness (mm): | 1.60 |
| Hail resistance class: | HW 3 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 120.00 |
| Cable length (cm) plus: | 120.00 |
| Short circuit current (A): | 14.56 |
| Open circuit voltage Uoc (V): | 39.50 |
| Power tolerance: | + 3% |
| Maximum reverse current (A): | 30 |
| Max. system voltage (V): | 1500 |
| Module composition: | bi-glass |
| Module efficiency (%): | 22.80 |
| Nominal power (Wc): | 455 |
| Nominal voltage Umpp (V): | 33.00 |
| Nominal current Impp (A): | 13.79 |
| Frame color: | black |
| Frame type: | framed |
| Connector Type: | MC4 Evo 2A |
| Temperature coefficient Isc (%/C): | 0.0450 |
| Temperature coefficient Pmpp (%/C): | -0.2900 |
| Temperature coefficient Uoc (%/C): | -0.2500 |
| Number of cells (horizontal): | 18 |
| Number of cells (vertical): | 6 |
| Cell width (mm): | 189,000 |
| Cell length (mm): | 93,000 |
| Cell section: | half-cell |
| Cell type: | monocrystalline |
| Manufacturer: | JA Solar |
| Manufacturer item designation: | JAM54D40-455/LB |
| Manufacturer's item number: | JAM54D40-455/LB |
| Instrastat product number (HS-Code): | 85414300 |
| Brand: | JA Solar |
| Country of origin: | China |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Class 2 Protection |
| Manufacturer's Product Name: : | JAM54D40-455/LB |
| Number of pallets per container: | 26 |
| Number per container: | 936 |
| Quantity per pallet: | 36 |
| Pallet weight (kg): | 817.00 |
| Pallet dimensions LxWxH (mm): | 1800x1150x1250 |
| Packaging material: | Carton |
| Width without packaging (mm): | 1,134.00 |
| Weight without packaging (kg): | 22,000 |
| Height without packaging (mm): | 30.00 |
| Length without packaging (mm): | 1,762.00 |
| Guarantor: | JA Solar |
| Performance Warranty (years): | 30 |
| Linear degressivity in %: | 0.4 |
| Product Warranty (years): | 25 |
| Initial % for the linear guarantee: | 99 |
