Sonnenstromfabrik
Art-Nr. 6351710

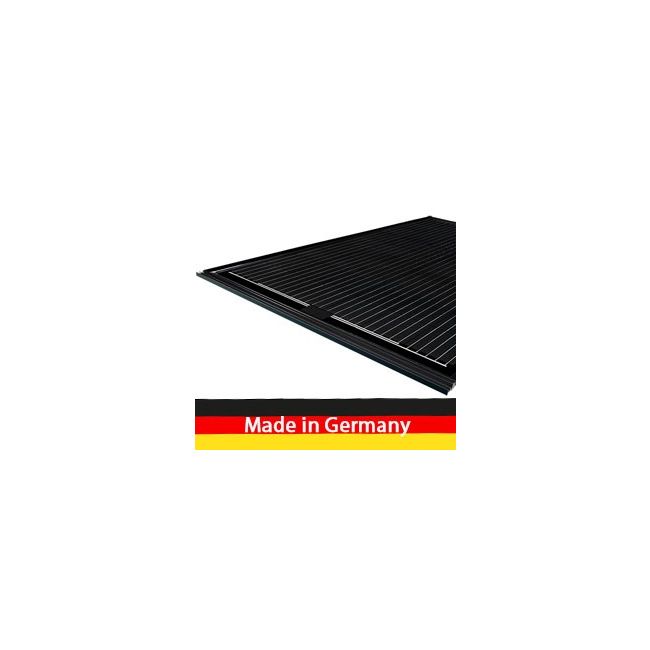

INTEGRATION 325 M60 Solrif Black
CHF 130.00
Sonnenstrom Fabrik Hochleistungs-Indachmodul
Hersteller Artikelnummer: IFS060D325E16S5C
Hersteller Artikelnummer: IFS060D325E16S5C
Verfügbarkeit:
Auf Lager
SKU
6351710
Product information
- including cable (approx. 100cm) and MC4 connector system
- Solrif frame in black anodized aluminum
- high-performance solar cells
Can be used in the same line (string) with the following modules:
- 6351708, 260W, 48 cells
- 6351709, 290W, 54 cells
| Brands | Sonnenstromfabrik |
|---|
| Module reaction to fire: | IEC 61730 |
| Maximum surface load capacity (pressure) (Pa): | 5400 |
| Max. pressure Wind load (suction) (Pa): | 2400 |
| Number of cells: | 60 |
| Bifacial: | No |
| Bus bars (p.): | 5 |
| Color of the back sheet on the cell side: | black |
| Protection class: | IP67 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 100.00 |
| Cable length (cm) plus: | 100.00 |
| Short circuit current (A): | 10.31 |
| Open circuit voltage Uoc (V): | 40.41 |
| Power tolerance: | +4.99 Wp |
| Maximum reverse current (A): | 15 |
| Max. system voltage (V): | 1000 |
| Module composition: | glass film |
| Module efficiency (%): | 18.20 |
| Nominal power (Wc): | 325 |
| Nominal voltage Umpp (V): | 33.85 |
| Nominal current Impp (A): | 9.60 |
| Frame color: | black |
| Frame type: | roof integration frame |
| Connector Type: | MC4 |
| Temperature coefficient Isc (%/C): | 0.0400 |
| Temperature coefficient Pmpp (%/C): | -0.3900 |
| Temperature coefficient Uoc (%/C): | -0.2800 |
| Number of cells (horizontal): | 10 |
| Number of cells (vertical): | 6 |
| Cell width (mm): | 158,750 |
| Cell length (mm): | 158,750 |
| Cell section: | full cell |
| Cell type: | monocrystalline |
| Fabricant: | Sonnenstromfabrik |
| Fabricant désignation de l'article: | INTEGRATION 325 M60 |
| Numéro d'article du fabricant: | IFS060D325E16S5C |
| Instrastat numéro de produit (HS-Code): | 85414300 |
| Marque: | Sonnenstromfabrik |
| Pays d'origine: | Allemagne |
| Certificat 1: | IEC/TÜV |
| Certificat 2: | Protection Class 2 |
| Nom de produit du fabricant: : | INTEGRATION 325 M60 Solrif Black |
| Nb de palettes par conteneur: | 30 |
| Nombre par conteneur: | 720 |
| Quantité par palette: | 24 |
| Poids de la palette (kg): | 595,00 |
| Dimensions de la palette LxLxH (mm): | 1210x1130x1920 |
| Matériel d'emballage: | Boite en carton |
| Largeur sans emballage (mm): | 1.025,00 |
| Poids sans emballage (kg): | 19,000 |
| Hauteur sans emballage (mm): | 16,00 |
| Longueur sans emballage (mm): | 1.743,00 |
| Garant: | Sonnenstromfabrik |
| Garantie de performance (années): | 26 |
| Dégréssivité linéaire en %: | 0,68 |
| Garantie du produit (ans): | 12 |
| % initial pour la garantie linéaire: | 97 |
