Sonnenstromfabrik
Art-Nr. 6351709

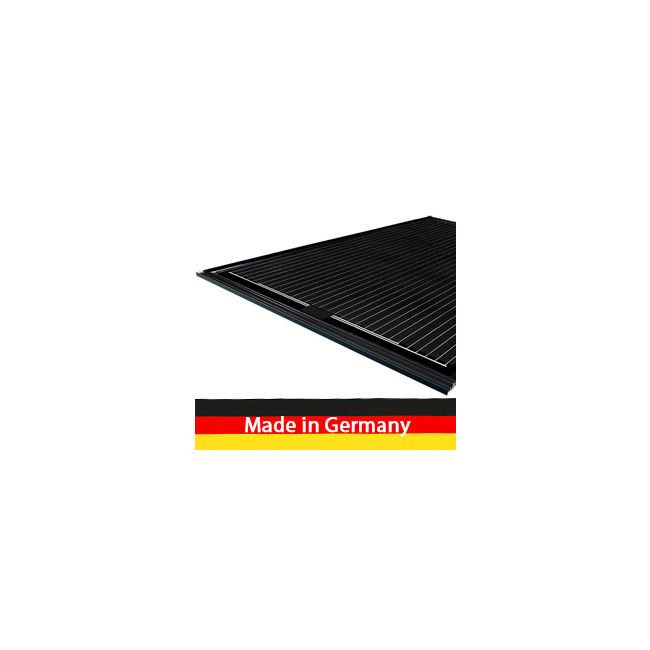

INTEGRATION 290 M54 Solrif Black
CHF 125.00
Sonnenstrom Fabrik Hochleistungs-Indachmodul
Hersteller Artikelnummer: IFS054D290E16S5C
Hersteller Artikelnummer: IFS054D290E16S5C
Verfügbarkeit:
Auf Lager
SKU
6351709
Product information
- including cable (approx. 100cm) and MC4 connector system
- Solrif frame in black anodized aluminum Solrif N
- high-performance solar cells
Can be used in the same line (string) with the following modules:
- 6351710, 325W, 60 cells
- 6351708, 260W, 48 cells
| Brands | Sonnenstromfabrik |
|---|
| Module reaction to fire: | IEC 61730 |
| Maximum surface load capacity (pressure) (Pa): | 5400 |
| Max. pressure Wind load (suction) (Pa): | 2400 |
| Number of cells: | 54 |
| Bifacial: | No |
| Bus bars (p.): | 5 |
| Color of the back sheet on the cell side: | black |
| Protection class: | IP67 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 100.00 |
| Cable length (cm) plus: | 100.00 |
| Short circuit current (A): | 10.17 |
| Open circuit voltage Uoc (V): | 36.37 |
| Power tolerance: | +4.99 Wp |
| Maximum reverse current (A): | 15 |
| Max. system voltage (V): | 1000 |
| Module composition: | glass film |
| Module efficiency (%): | 17.80 |
| Nominal power (Wc): | 290 |
| Nominal voltage Umpp (V): | 30.31 |
| Nominal current Impp (A): | 9.57 |
| Frame color: | black |
| Frame type: | roof integration frame |
| Connector Type: | MC4 |
| Temperature coefficient Isc (%/C): | 0.0400 |
| Temperature coefficient Pmpp (%/C): | -0.3900 |
| Temperature coefficient Uoc (%/C): | -0.2800 |
| Number of cells (horizontal): | 9 |
| Number of cells (vertical): | 6 |
| Cell width (mm): | 158,750 |
| Cell length (mm): | 158,750 |
| Cell section: | full cell |
| Cell type: | monocrystalline |
| Manufacturer: | Sunpower Factory |
| Manufacturer item designation: | INTEGRATION 290 M54 |
| Manufacturer's item number: | IFS054D290E16S5C |
| Instrastat product number (HS-Code): | 85414300 |
| Brand: | Sunpower Factory |
| Country of origin: | Germany |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Class 2 Protection |
| Manufacturer's Product Name: : | INTEGRATION 290 M54 Solrif Black |
| Number of pallets per container: | 24 |
| Number per container: | 720 |
| Quantity per pallet: | 30 |
| Pallet weight (kg): | 535.00 |
| Pallet dimensions LxWxH (mm): | 1210x1130x1740 |
| Packaging material: | Carton |
| Width without packaging (mm): | 1,025.00 |
| Weight without packaging (kg): | 17,500 |
| Height without packaging (mm): | 16.00 |
| Length without packaging (mm): | 1,593.00 |
| Guarantor: | Sunpower Factory |
| Performance Warranty (years): | 26 |
| Linear degressivity in %: | 0.68 |
| Product Warranty (years): | 12 |
| Initial % for the linear guarantee: | 97 |
