Aleo
Art-Nr. 6353896
Elegante G40 C210
CHF 300.00

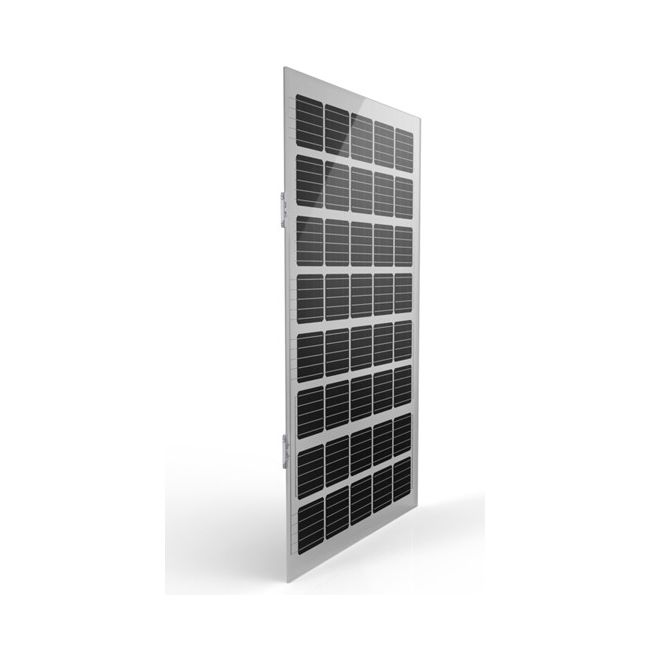

Aleo Solar Hochleistungsmodul
Hersteller Artikelnummer: G40C210
Hersteller Artikelnummer: G40C210
Verfügbarkeit:
Auf Lager
SKU
6353896
Product information
- 1 x 820mm connection cable included
- TE Connectivity Solarlok Slim-Line Connection System
- High-efficiency solar cells
Solarlok Slim Line connectors are required for the jumper cables and for the beginning and end of the strings. These must be ordered separately.
- Solarlok Slim-Line Plus Red 6348741
- Solarlok Slim-Line Minus Blue 6348742
| Brands | Aleo |
|---|
| Max. pressure Wind load (suction) (Pa): | 5400 |
| Maximum surface load capacity (pressure) (Pa): | 7500 |
| Number of cells: | 40 |
| Bifacial: | No |
| Color of the back sheet on the cell side: | transparent |
| Protection class: | IP67 |
| Front glass thickness (mm): | 4.00 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 82.00 |
| Cable length (cm) plus: | 82.00 |
| Short circuit current (A): | 9.71 |
| Open circuit voltage Uoc (V): | 27.10 |
| Power tolerance: | +9.99 Wp |
| Maximum reverse current (A): | 20 |
| Max. system voltage (V): | 1000 |
| Module composition: | bi-glass |
| Module efficiency (%): | 13.20 |
| Nominal power (Wc): | 210 |
| Nominal voltage Umpp (V): | 22.30 |
| Nominal current Impp (A): | 9.42 |
| Frame color: | none |
| Frame type: | Frameless |
| Connector Type: | Tyco |
| Temperature coefficient Isc (%/C): | 0.0500 |
| Temperature coefficient Pmpp (%/C): | -0.4000 |
| Temperature coefficient Uoc (%/C): | -0.2900 |
| Number of cells (horizontal): | 8 |
| Number of cells (vertical): | 5 |
| Cell width (mm): | 156,750 |
| Cell length (mm): | 156,750 |
| Coupe de la cellule: | cellule intégrale carrée |
| Type de cellule: | monocristallin |
| Fabricant: | aleo |
| Fabricant désignation de l'article: | G40C210 |
| Numéro d'article du fabricant: | G40C210 |
| Instrastat numéro de produit (HS-Code): | 85414300 |
| Marque: | aleo |
| Pays d'origine: | Allemagne |
| Certificat 1: | IEC/TÜV |
| Certificat 2: | Protection Class 2 |
| Nom de produit du fabricant: : | Elegante G40 C210 |
| Quantité par palette: | 15 |
| Dimensions de la palette LxLxH (mm): | 1700x800x1100 |
| Largeur sans emballage (mm): | 950,00 |
| Poids sans emballage (kg): | 31,500 |
| Hauteur sans emballage (mm): | 9,00 |
| Longueur sans emballage (mm): | 1.600,00 |
| Garant: | aleo |
| Garantie de performance (années): | 30 |
| Dégréssivité linéaire en %: | 0,56 |
| Garantie du produit (ans): | 30 |
| % initial pour la garantie linéaire: | 98 |
