Luxor Solar
Art-Nr. 6358333

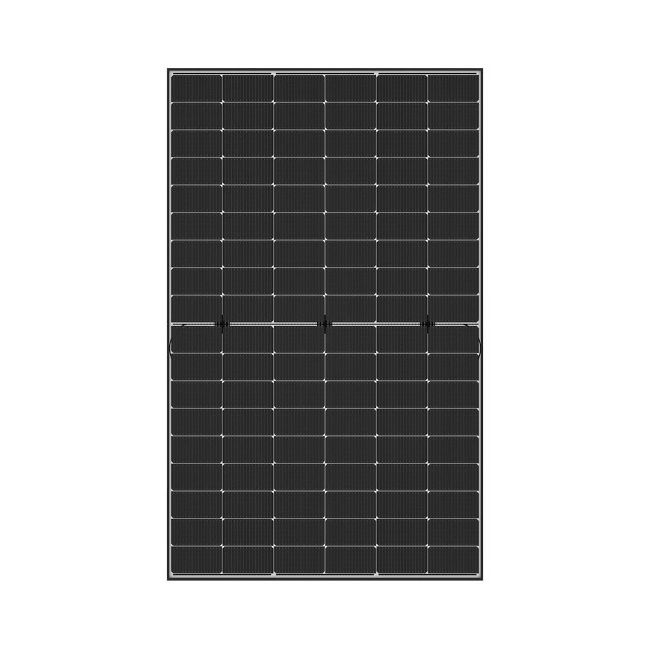

ECO LINE N-TYPE GLAS-GLAS BIFACIAL 445W FRAMELESS
CHF 220.25
LUXOR N-Type HJT Bifacial Glas-Glas transparent
Verfügbarkeit:
Auf Lager
SKU
6358333
Product information
- cable included (approx. 110 cm) and MC4 connection system
- Frameless transparent design
- Topcon high-performance bifacial solar cells
- Glass thickness: 2x 2 mm
| Brands | Luxor Solar |
|---|
| Module reaction to fire: | C, IEC 61730 |
| Max. pressure Wind load (suction) (Pa): | 1600 |
| Maximum surface load capacity (pressure) (Pa): | 2400 |
| Number of cells: | 96 |
| Bifacial: | Yes |
| Bus bars (p.): | 16 |
| Color of the back sheet on the cell side: | transparent |
| Protection class: | IP67 |
| Front glass thickness (mm): | 2.00 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 110.00 |
| Cable length (cm) plus: | 110.00 |
| Short circuit current (A): | 15.35 |
| Open circuit voltage Uoc (V): | 37.88 |
| Power tolerance: | +6.49 Wp |
| Maximum reverse current (A): | 30 |
| Max. system voltage (V): | 1500 |
| Module composition: | bi-glass |
| Module efficiency (%): | 22.26 |
| Nominal power (Wc): | 445 |
| Nominal voltage Umpp (V): | 30.87 |
| Nominal current Impp (A): | 14.43 |
| Frame color: | none |
| Frame type: | Frameless |
| Connector Type: | MC4 Evo 2 |
| Temperature coefficient Isc (%/C): | 0.0400 |
| Temperature coefficient Pmpp (%/C): | -0.2400 |
| Temperature coefficient Uoc (%/C): | -0.2600 |
| Number of cells (horizontal): | 18 |
| Number of cells (vertical): | 6 |
| Cell width (mm): | 210,000 |
| Cell length (mm): | 91,000 |
| Cell section: | half-cell |
| Cell type: | monocrystalline |
| Cell composition: | heterojunction |
| Manufacturer: | Luxor Solar |
| Manufacturer item designation: | LX-445M/182R-96+ GG |
| Instrastat product number (HS-Code): | 85414300 |
| Brand: | Luxor Solar |
| Country of origin: | China |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Fire Protection Class 1 |
| Manufacturer's Product Name: : | ECO LINE N-TYPE GLAS-GLAS BIFACIAL 445W FRAMELESS |
| Number of pallets per container: | 18 |
| Number per container: | 612 |
| Quantity per pallet: | 34 |
| Packaging material: | Carton |
| Width without packaging (mm): | 1,128.00 |
| Weight without packaging (kg): | 23,500 |
| Height without packaging (mm): | 5.00 |
| Length without packaging (mm): | 1,756.00 |
| Guarantor: | Luxor Solar |
| Performance Warranty (years): | 30 |
| Linear degressivity in %: | 0.34 |
| Product Warranty (years): | 30 |
| Initial % for the linear guarantee: | 99 |
