Luxor Solar
Art-Nr. 6353696

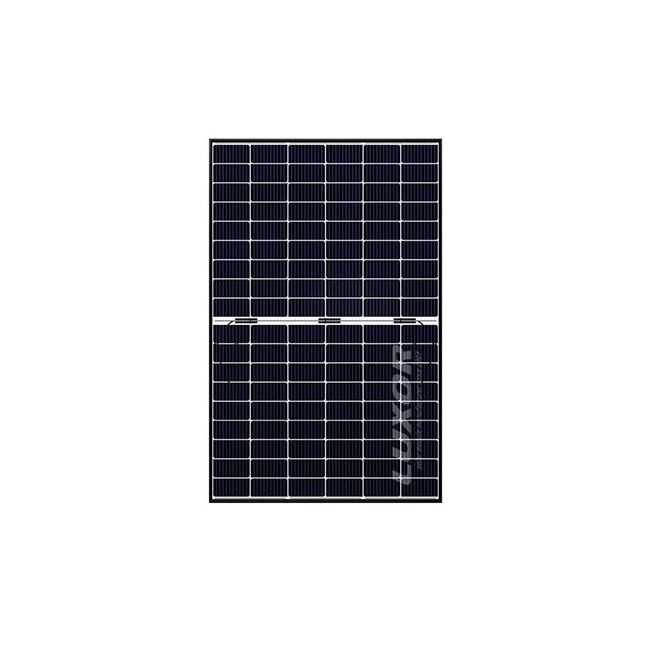

ECO LINE GLAS-GLAS HALF CELL BIFACIAL M108/400W
CHF 122.50
LUXOR Hochleistungsmodul Glas-Glas transparent
Hersteller Artikelnummer: LD16635
Hersteller Artikelnummer: LD16635
Verfügbarkeit:
Auf Lager
SKU
6353696
Product information
- cable included (approx. 110 cm) and MC4 EVO2 connection system
- frameless
- transparent version
- high-performance bifacial solar cells
- high quality plastic junction box
- version with 10 busbars
| Brands | Luxor Solar |
|---|
| Module reaction to fire: | A, IEC 61730 |
| Max. pressure Wind load (suction) (Pa): | 1600 |
| Maximum surface load capacity (pressure) (Pa): | 2400 |
| Number of cells: | 108 |
| Bifacial: | Yes |
| Bus bars (p.): | 10 |
| Color of the back sheet on the cell side: | transparent |
| Protection class: | IP67 |
| Front glass thickness (mm): | 2.00 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 110.00 |
| Cable length (cm) plus: | 110.00 |
| Short circuit current (A): | 13.60 |
| Open circuit voltage Uoc (V): | 37.01 |
| Power tolerance: | +6.49 Wp |
| Maximum reverse current (A): | 25 |
| Max. system voltage (V): | 1500 |
| Module composition: | bi-glass |
| Module efficiency (%): | 20.08 |
| Nominal power (Wc): | 400 |
| Nominal voltage Umpp (V): | 31.09 |
| Nominal current Impp (A): | 12.88 |
| Frame color: | none |
| Frame type: | Frameless |
| Connector Type: | MC4 Evo 2 |
| Temperature coefficient Isc (%/C): | 0.0490 |
| Temperature coefficient Pmpp (%/C): | -0.3600 |
| Temperature coefficient Uoc (%/C): | -0.2850 |
| Number of cells (horizontal): | 18 |
| Number of cells (vertical): | 6 |
| Cell width (mm): | 182,000 |
| Cell length (mm): | 91,000 |
| Cell section: | half-cell |
| Cell type: | monocrystalline |
| Manufacturer: | Luxor Solar |
| Manufacturer item designation: | LX-400M/182-108+ GG BIF |
| Manufacturer's item number: | LD16635 |
| Instrastat product number (HS-Code): | 85414300 |
| Brand: | Luxor Solar |
| Country of origin: | China |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Fire Protection Class 1 |
| Manufacturer's Product Name: : | ECO LINE GLAS-GLAS HALF CELL BIFACIAL M108/400W |
| Number of pallets per container: | 18 |
| Number per container: | 612 |
| Quantity per pallet: | 34 |
| Packaging material: | Carton |
| Width without packaging (mm): | 1,128.00 |
| Weight without packaging (kg): | 23,300 |
| Height without packaging (mm): | 5.00 |
| Length without packaging (mm): | 1,748.00 |
| Guarantor: | Luxor Solar |
| Performance Warranty (years): | 30 |
| Product Warranty (years): | 30 |
| Initial % for the linear guarantee: | 97.5 |
