AIKO Solar
Art-Nr. 6358944
AIKO-A445-MAH54Mb G1
CHF 173.50

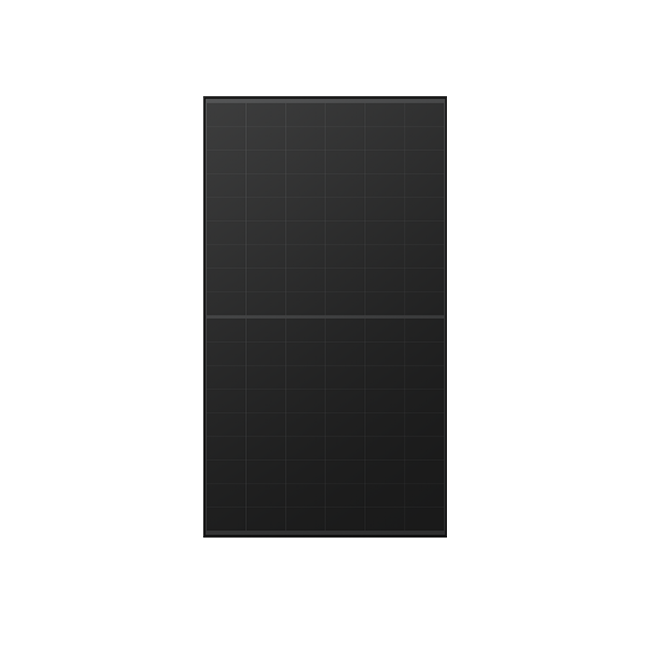

Aiko N-Type ABC mono-glass fullblack
Hersteller Artikelnummer: AIKO-A445-MAH54Mb
Hersteller Artikelnummer: AIKO-A445-MAH54Mb
Verfügbarkeit:
Auf Lager
SKU
6358944
Product information
- Including cable (approx. 120 cm) and MC4 EVO2 connector system
- Stable frame made of black anodized aluminum
- High-performance solar cells
- glass thickness 3.2mm
hail resistance: RG 4 ( AEAI Certificate )
| Brands | AIKO Solar |
|---|
| Module reaction to fire: | C, IEC 61730 |
| Maximum surface load capacity (pressure) (Pa): | 5400 |
| Max. pressure Wind load (suction) (Pa): | 2400 |
| Number of cells: | 108 |
| Bifacial: | No |
| Color of the back sheet on the cell side: | black |
| Protection class: | IP68 |
| Front glass thickness (mm): | 3.20 |
| Built-in optimizer: | No |
| Minus cable length (cm): | 120.00 |
| Cable length (cm) plus: | 120.00 |
| Short circuit current (A): | 13.86 |
| Open circuit voltage Uoc (V): | 40.60 |
| Power tolerance: | +3% |
| Maximum reverse current (A): | 25 |
| Max. system voltage (V): | 1500 |
| Module composition: | glass film |
| Module efficiency (%): | 22.80 |
| Nominal power (Wc): | 445 |
| Nominal current Impp (A): | 13.25 |
| Frame color: | black |
| Frame type: | framed |
| Connector Type: | MC4 Evo 2 |
| Temperature coefficient Isc (%/C): | 0.0500 |
| Temperature coefficient Pmpp (%/C): | -0.2600 |
| Temperature coefficient Uoc (%/C): | -0.2200 |
| Cell width (mm): | 182,000 |
| Cell length (mm): | 91,000 |
| Cell section: | half-cell |
| Cell type: | monocrystalline |
| Manufacturer: | AIKO Solar |
| Manufacturer item designation: | AIKO-A445-MAH54Mb |
| Manufacturer's item number: | AIKO-A445-MAH54Mb |
| Instrastat product number (HS-Code): | 85414300 |
| Brand: | AIKO Solar |
| Country of origin: | China |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Class 2 Protection |
| Manufacturer's Product Name: : | AIKO-A445-MAH54Mb G1 |
| Number of pallets per container: | 26 |
| Number per container: | 806 |
| Quantity per pallet: | 31 |
| Packaging material: | Carton |
| Width without packaging (mm): | 1,134.00 |
| Weight without packaging (kg): | 21,600 |
| Height without packaging (mm): | 35.00 |
| Length without packaging (mm): | 1,722.00 |
| Guarantor: | AIKO Solar |
| Performance Warranty (years): | 30 |
| Linear degressivity in %: | 0.35 |
| Standard Product Warranty (years): | 15 |
| Initial % for the linear guarantee: | 99 |
